Getting Started with tdepend

Welcome to tdepend, a powerful CLI tool and library for analyzing architectural fitness in TypeScript projects. This guide will help you get started quickly.

Installation

Install tdepend globally for CLI usage:

npm install -g tdepend
# or
yarn global add tdepend
# or
pnpm add -g tdepend

Or install as a development dependency in your project:

npm install -D tdepend
# or
yarn add -D tdepend
# or
pnpm add -D tdepend

Quick Start (CLI)

Run tdepend on your project:

tdepend analyze

This performs a complete analysis and outputs architectural metrics including:

  • Afferent Coupling (Ca): Number of modules that depend on this module
  • Efferent Coupling (Ce): Number of modules this module depends on
  • Instability (I): Ratio of efferent to total coupling
  • Abstractness (A): Ratio of abstract types to total types
  • Distance (D): Distance from the main sequence
  • Cycles: Circular dependencies detected using Tarjan’s algorithm

CLI Commands & Options

# Basic analysis
tdepend analyze

# Use custom config file
tdepend analyze --config custom-config.json

# Export analysis to JSON file
tdepend analyze --export analysis-result.json
tdepend analyze -o analysis-result.json

# CI mode with JSON output and strict exit codes
tdepend analyze --ci

# Analyze specific class
tdepend analyze --class MyClassName

# Analyze specific namespace
tdepend analyze --namespace MyNamespace

# Analyze specific module/file
tdepend analyze src/services/user.ts

Quick Start (Library)

Use tdepend programmatically in your Node.js/TypeScript applications:

import { analyze, exportToFile } from 'tdepend';

// Run analysis with options
const result = await analyze({
  rootDir: 'src',
  include: ['src/**/*.ts'],
  failOnCycle: true
});

console.log(`Analyzed ${result.modules.length} modules`);
console.log(`Found ${result.cycles.length} cycles`);

// Export results to JSON
await exportToFile(result, 'architecture-snapshot.json');

// Access detailed metrics
for (const metric of result.metrics) {
  if (metric.distance > 0.8) {
    console.log(`${metric.filePath}: D=${metric.distance.toFixed(2)}`);
  }
}

Library API

Main Functions:

  • analyze(options?) - Run dependency analysis with custom options
  • analyzeWithConfig(config) - Execute analysis using a full config object
  • exportToFile(result, filePath, options?) - Write analysis results to JSON file
  • exportToJson(result, options?) - Serialize analysis to JSON string
  • toSerializable(result) - Transform result to serializable format

Core Building Blocks:

  • DependencyGraph - Graph data structure for dependency relationships
  • detectCycles(graph) - Detect circular dependencies
  • computeAllMetrics(graph, modules, cycles) - Calculate architectural metrics
  • parseProject(files) - Parse and extract TypeScript module information
  • scanFiles(config) - Discover files matching glob patterns
  • loadConfig(path?) - Load and validate configuration

Configuration

Create a tdepend.config.json file in your project root:

{
  "rootDir": "src",
  "include": ["src/**/*.ts", "src/**/*.tsx"],
  "exclude": ["**/*.test.ts", "**/*.spec.ts", "dist"],
  "metrics": {
    "enabled": ["coupling", "abstractness", "distance", "cycles"],
    "thresholds": {
      "distance": 0.6
    }
  },
  "analysis": {
    "target": null,
    "value": null
  },
  "ci": {
    "failOnThreshold": true,
    "failOnCycle": false,
    "outputFormat": "console"
  }
}

Configuration Options

  • rootDir: Root directory for analysis (default: "src")
  • include: Glob patterns for files to include (default: ["src/**/*.ts", "src/**/*.tsx"])
  • exclude: Glob patterns for files to exclude (default: ["**/*.test.ts", "**/*.spec.ts", "dist"])
  • metrics.enabled: Metrics to compute ("coupling", "abstractness", "distance", "cycles")
  • metrics.thresholds.distance: Maximum allowed distance from main sequence (default: 0.6)
  • analysis.target: Scope analysis to "module", "class", or "namespace" (default: null)
  • analysis.value: Value for the target scope
  • ci.failOnThreshold: Exit with code 1 on threshold violations (default: true)
  • ci.failOnCycle: Exit with code 1 when cycles are detected (default: false)
  • ci.outputFormat: Output format - "console" or "json" (default: "console")

Understanding Metrics

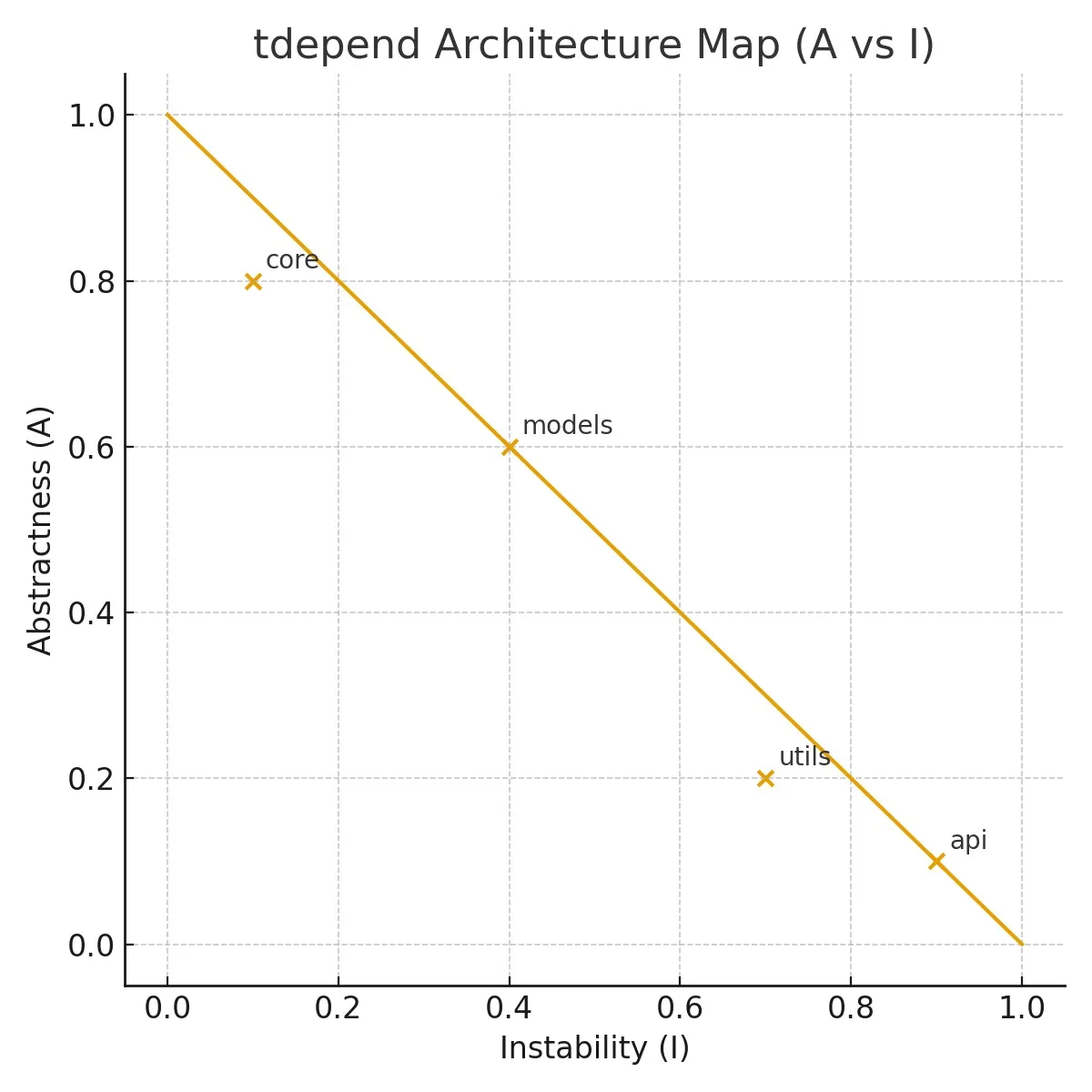

tdepend Architecture map (Abstractness vs Instability)

Instability (I)

Instability measures how susceptible a module is to change:

I = Ce / (Ca + Ce)
  • I = 0: Maximally stable (many dependents, few dependencies)
  • I = 1: Maximally unstable (few dependents, many dependencies)

Abstractness (A)

Abstractness measures the ratio of abstract types to concrete types:

A = (Abstract Classes + Interfaces) / Total Types
  • A = 0: Completely concrete
  • A = 1: Completely abstract

Distance from Main Sequence (D)

The main sequence represents the ideal balance between stability and abstractness:

D = |A + I - 1|
  • D = 0: Perfect balance (on the main sequence)
  • D > 0.6: Too far from ideal (potential design smell)

Modules in the Zone of Pain (high stability, low abstractness) or Zone of Uselessness (low stability, high abstractness) should be refactored.

Detecting Cycles

tdepend automatically detects circular dependencies using Tarjan’s strongly connected components algorithm:

tdepend analyze

Cycles are included in the analysis output. To fail the build when cycles are detected:

tdepend analyze --ci

With failOnCycle: true in your config, or:

const result = await analyze({
  rootDir: 'src',
  failOnCycle: true
});

Export Formats

CLI Export

# Export full analysis with all data
tdepend analyze --export full-analysis.json

Programmatic Export

import { analyze, exportToFile, toSerializable } from 'tdepend';

const result = await analyze({ rootDir: 'src' });

// Export to file
await exportToFile(result, 'analysis.json');

// Or get JSON string
const json = exportToJson(result, { pretty: true });

// Or get serializable object for custom processing
const serialized = toSerializable(result);

The exported JSON includes:

  • Format version and timestamp
  • Full configuration used
  • All parsed modules with imports/exports
  • Serialized dependency graph (Sets → Arrays)
  • Normalized cycles with unique IDs
  • Complete metrics for all modules
  • Analysis report with violations

Integration with Other Tools

tdepend is designed to work alongside other architectural tools:

With ts-arch

import { analyze } from 'tdepend';

const result = await analyze({ rootDir: 'src' });

// Use dependency graph for ts-arch rules
const dependencies = result.modules.map(m => ({
  file: m.filePath,
  imports: m.imports,
}));

// Apply architectural rules...

With CI/CD

import { analyze, exportToFile } from 'tdepend';

const result = await analyze({
  rootDir: 'src',
  failOnCycle: true,
  failOnThreshold: true
});

await exportToFile(result, 'tdepend-report.json');

if (!result.report.success) {
  console.error('Architecture violations detected!');
  process.exit(1);
}

With Custom Dashboards

import { analyze } from 'tdepend';

const result = await analyze({ rootDir: 'src' });

const dashboard = {
  timestamp: new Date().toISOString(),
  summary: result.report.summary,
  avgDistance: result.metrics.reduce((sum, m) => sum + m.distance, 0) / result.metrics.length,
  topCoupled: result.metrics.sort((a, b) => (b.Ce + b.Ca) - (a.Ce + a.Ca)).slice(0, 10)
};

// Send to your monitoring system...

Example Output

Console Output

📊 Summary:
  Total imports: 51
  Total exports: 70
  Total classes: 1
  Total interfaces: 15
  Cycles detected: 0

📥 Top modules by Ca (Afferent Coupling):
  - schema.ts: Ca=7, Ce=0
  - dependencyGraph.ts: Ca=6, Ce=2
  - parser.ts: Ca=6, Ce=0

📏 Modules by Distance from Main Sequence:
  - index.ts: D=1.00, A=0.00, I=0.00 (Zone of Pain)
  - schema.ts: D=1.00, A=0.00, I=0.00 (Zone of Pain)

JSON Output

{
  "version": "1.0.0",
  "timestamp": "2026-02-08T15:17:26.494Z",
  "config": { ... },
  "modules": [ ... ],
  "graph": {
    "nodes": [
      {
        "filePath": "/path/to/file.ts",
        "dependencies": ["..."],
        "dependents": ["..."]
      }
    ]
  },
  "cycles": [],
  "metrics": [ ... ],
  "report": {
    "success": true,
    "summary": { ... },
    "violations": { ... }
  }
}

Next Steps

  • Check out the Concepts page to learn about architectural principles
  • Browse the examples for integration patterns
  • Set up quality gates in your CI/CD pipeline
  • Integrate with ts-arch or dependency-cruiser for comprehensive checks
